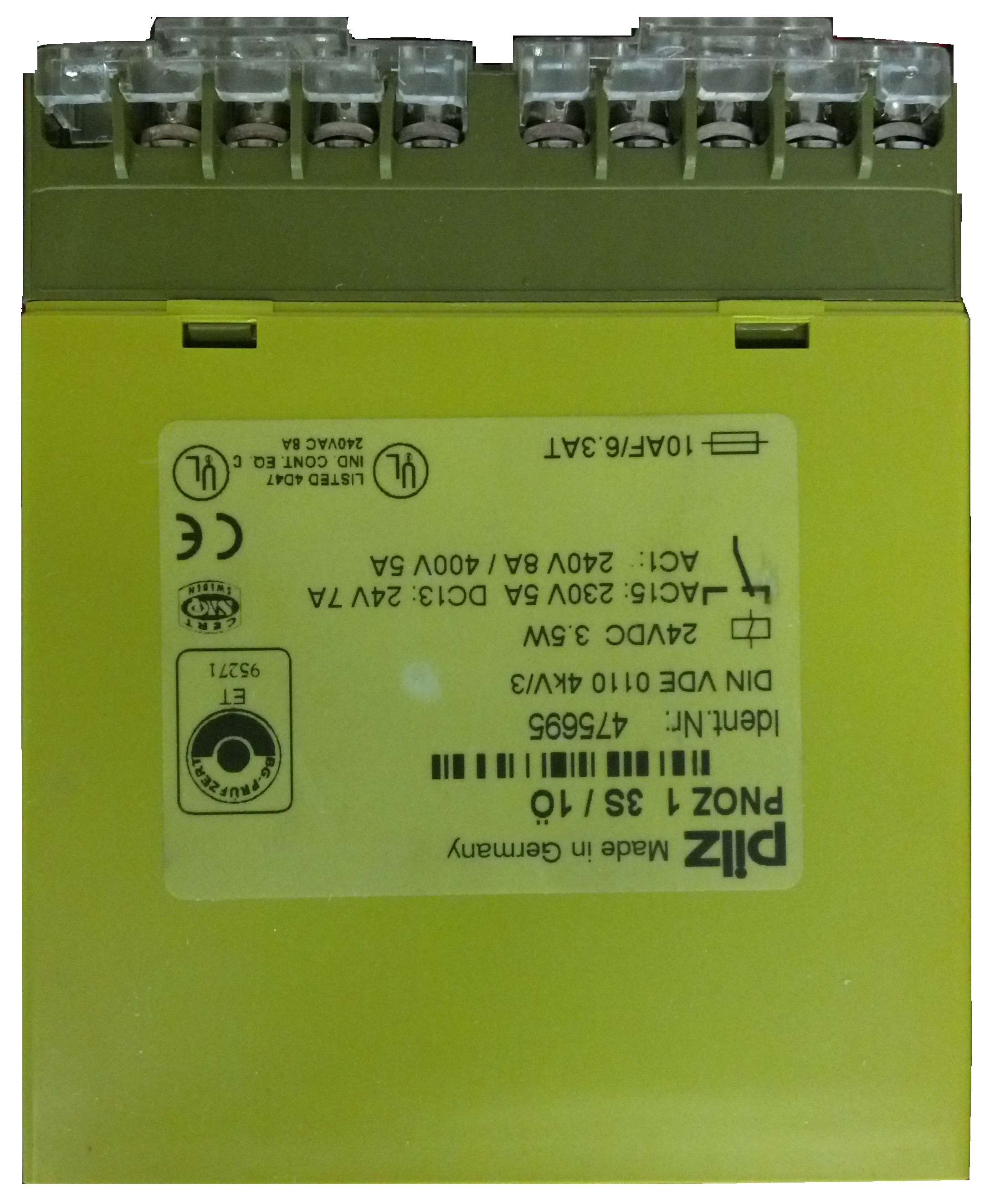

PILZ F475695 PNOZ1/24VDC
Part Number: PILZ F475695 PNOZ1/24VDC
Manufacturer: PILZ

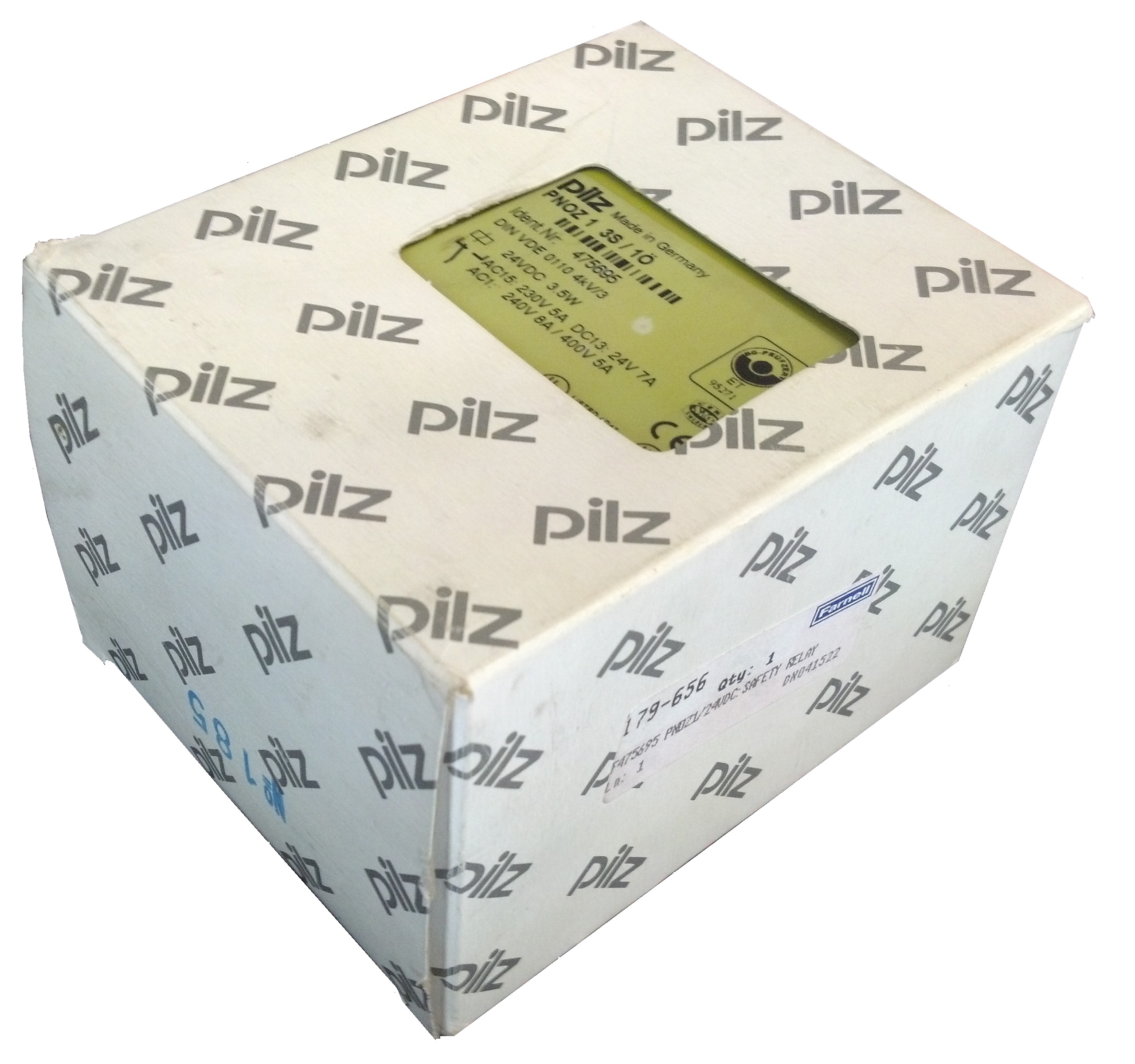

Condition: Shelved Item...Never Been Used
Coil Voltage VDC Nom: 24V
Contact Current Max: 8A
Contact Voltage AC Nom: 250V
Contact Voltage DC Nom: 24V
No. of Poles: 4
Relay Mounting: DIN Rail
External Height: 75mm
External Width: 90mm
External Depth: 110mm
SVHC: No SVHC (19-Dec-2011)
Contact Configuration: 3NO / 1NC
Contact Current AC Max: 8A
Contact Current DC Max: 8A
Contact Voltage AC Max: 250V
Contact Voltage DC Max: 24V
External Length / Height: 75mm
Input Voltage: 24V
Mounting Type: DIN Rail
Operating Temperature Max: 55C
Operating Temperature Min: -10C
Power Consumption: 3.5W
Protection Type: VDE 0660 Pt. 2
Series: PNOZ 1
Supply Voltage: 24V
Switching Capacity: 250V ac/24V dc, 8A
Description: RELAY, SAFETY, 3NO, 24VDC
Price: US $230.00
