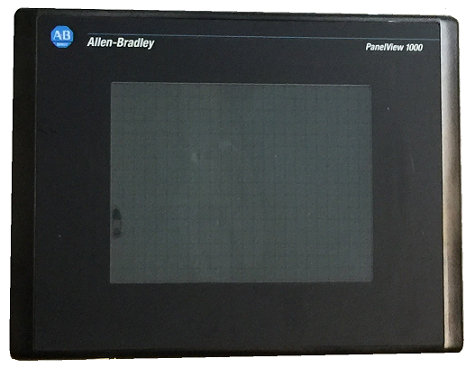

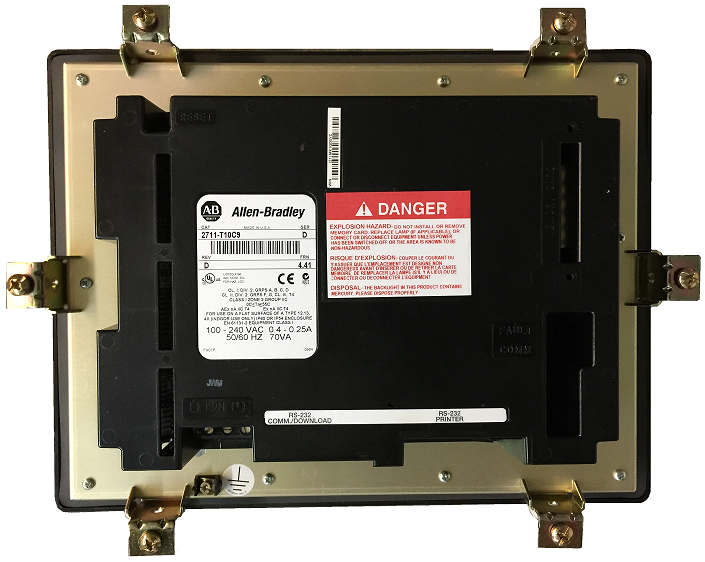

Allen-Bradley Panelview 1000

2711-T10C9
2711-T10C9

Model: Panelview 1000
Part Number: 2711-T10C9
Manufacturer: Allen Bradley
Condition: Used
Serial Number: WIN (21)MK1QD0YC
Display type: Backlit color TFT
Presentation form: Graphics + Text
Display size: 10.4 IN Color Active-Matrix TFT
Memory: 1 MB Flash
Power supply: 100-240 V AC
Dimensions: 8.3 X 6.2 IN
Expansion card locations: 2
Communication port: RS-232 (DH-485) And RS-232 Printer Port
Description: The Allen-Bradley 2711-T10C9 Panelview 1000 is a graphic terminal that allows users to easily interface with their machinery. This unit features a 10.1-inch Color display. Operators can input information using the Touchscreen and on the PanelBuilder 32 software, which allows for easy and simply use. The unit has ports for RS-232 (DH-485) and RS-232 Printer Port communication and features 85-264V AC input power.
Price: US $2,500.00

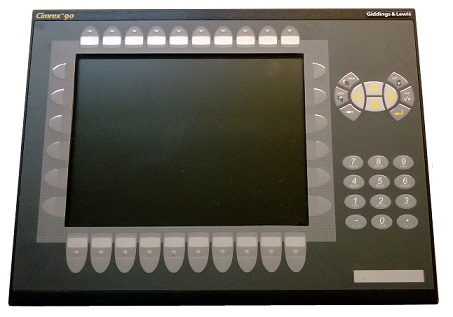

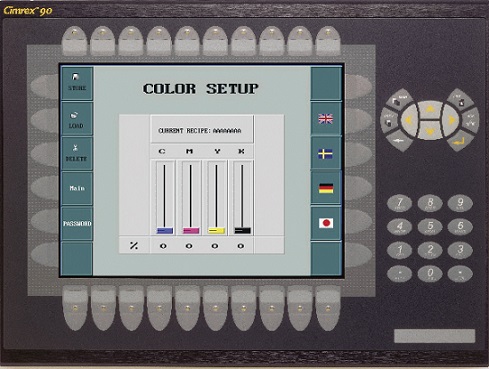

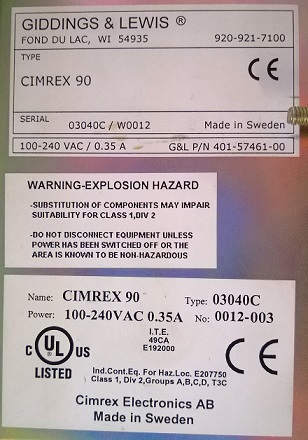

Cimrex 90

Cimrex90
Cimrex90
Cimrex90

Model: Cimrex 90
Part Number: 920-921-7100
Manufacturer: Beijers Electronics
Condition: Used(Demmo)
Serial Number: 03040C/W0012
Display type: Backlit color TFT
Presentation form: Graphics + Text
Display size: 640 x 480 pixels, 10.4 in.
Memory: 2 M flash
Power supply: 100-240 V AC
Dimensions: W 290 mm x H 250 mm x D 110 mm
Expansion card locations: 2
Communication port: RS422/485, RS232
Description: The Cimrex 90 is a fully graphic operator terminal using a bright TFT color display with 640 x 480 pixels resolution. Both static and dynamic graphics can be used to render dialogs very rich in detail and more intuitive to the operator. This shortens machine operator training time and improves machine productivity. Applications can be developed using standard objects, including bar graphs, slide bars, meters, lamps, and switches, or customized with user-developed symbols. The touchscreen overlay allows any area of the display to respond directly to operator touch. Real-time and historic trend graphs are provided in addition to recipe storage, event scheduling, real-time clock, password protection, and report-generation capability. Using multiple alarm groups, the Cimrex 91 can address complex applications.
Price: US $4,500.00

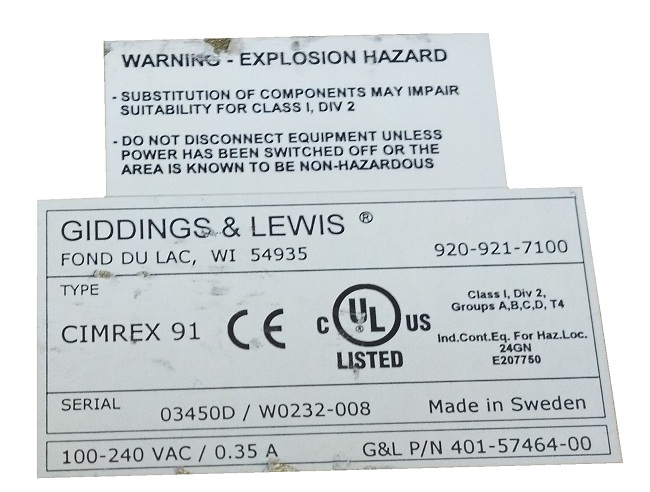

Cimrex 91

Cimrex91
Cimrex91

Model: Cimrex 91
Part Number: M.1016.2770
Manufacturer: Beijers Electronics
Condition: Used
Serial Number: 03450D/W0232-008
Display type: Backlit color TFT
Presentation form: Graphics + Text
Display size: 640 x 480 pixels, 10.4 in.
Memory: 2 M flash
Power supply: 100-240 V AC
Dimensions: W 290 mm x H 250 mm x D 110 mm
Expansion card locations: 2
Communication port: RS422/485, RS232
Description: The Cimrex 91 is a fully graphic operator terminal using a bright TFT color display with 640 x 480 pixels resolution. Both static and dynamic graphics can be used to render dialogs very rich in detail and more intuitive to the operator. This shortens machine operator training time and improves machine productivity. Applications can be developed using standard objects, including bar graphs, slide bars, meters, lamps, and switches, or customized with user-developed symbols. The touchscreen overlay allows any area of the display to respond directly to operator touch. Real-time and historic trend graphs are provided in addition to recipe storage, event scheduling, real-time clock, password protection, and report-generation capability. Using multiple alarm groups, the Cimrex 91 can address complex applications.
Price: US $4,500.00

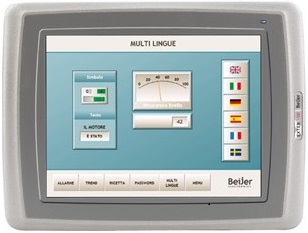

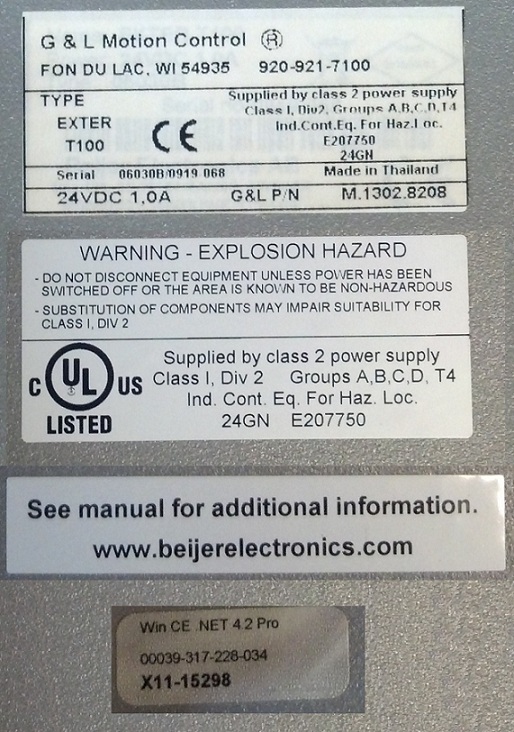

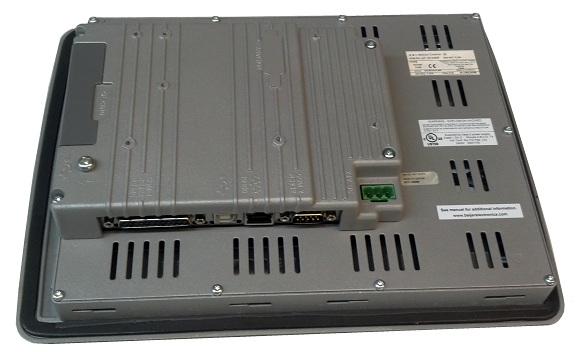

Exter T100

Exter T100
Exter T100
Exter T100

Model: Exter T100
Part Number: M.1302.8208
Manufacturer: Beijers Electronics | G & L Motion Control
Condition: Used
Serial Number: 03450D/W0232-008
Display type: TFT-LCD CCFL backlight lifetime at the ambient temperature of +25 °C
Presentation form: Graphics + Text
Display size: 800 x 600 pixels, high-resolution 10.4 in.
Memory: 64 MB
Power supply: +24 V DC (20 - 30 V DC). 3-pin jack connection block
Enclosure: IP66 Classified
Dimensions W x H x D: 302 x 228 x 6 mm
Expansion card locations: 2
Communication port: RS422/485, RS232, Ethernet 10/100 Mbit/s. Shielded RJ 45, USB, CF-Slot, and Field Bus Expansion Module
Description: Aluminum frame and casing in appealing design, powder-coated in "steel"-gray color, provides protection and gives a timeless look. The 4-color foil print further enhances the sense of depth in the operator panel. The front enclosure is IP66 classified, which means that it is waterproof even when exposed to high pressure washing. The operator panel is configured with the user-friendly software tool Information Designer.
Price: US $4,150.00

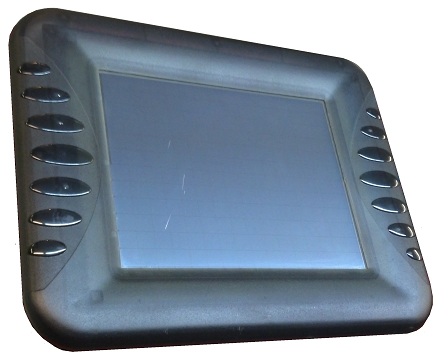

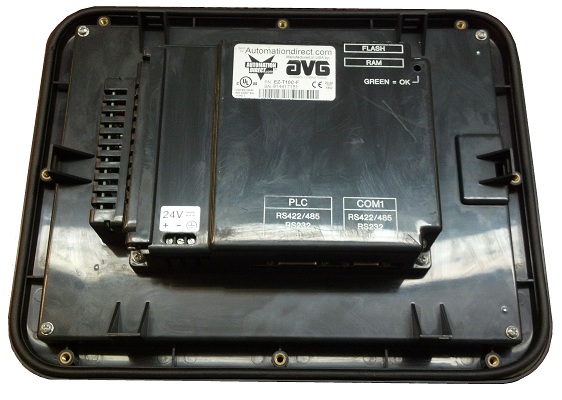

EZ-T10C-F

EZ-T10C-F
EZ-T10C-F
EZ-T10C-F

Model: EZ-T10C-F
Part Number: EZ-T10C-F
Manufacturer: Automation Direct/AVG
Condition: Used as Demo Equipment (Low Hours ~5 Hr.)
Serial Number: 014417151
Display type: 10.4" Color Touch Panel
Presentation form: Graphics + Text
Display size: 640 X 480
Memory: 512K RAM memory.
Power supply: 24 Volts DC.
Dimensions: 8.33" Wide, 6.22" High
Expansion card locations: N/A
Communication port 1: RS422/485, RS232 (15 Pin Dsub)
Communication port 2: RS422/485, RS232 (9 Pin Dsub)
Description: NEMA 4, slim bezel EZTouch operator panel, offers 10.4 inch TFT color display and 192-cell resistive touch screen, 512K RAM, expandable to 1.5Mbyte. 20-30VDC operating range.
Price: US $1,400.00

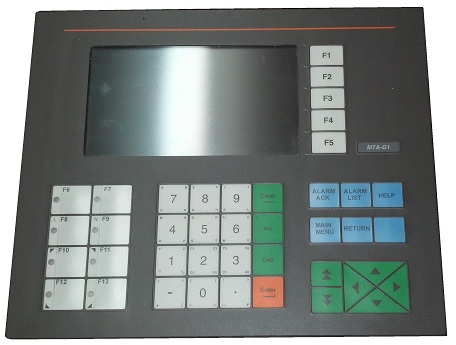

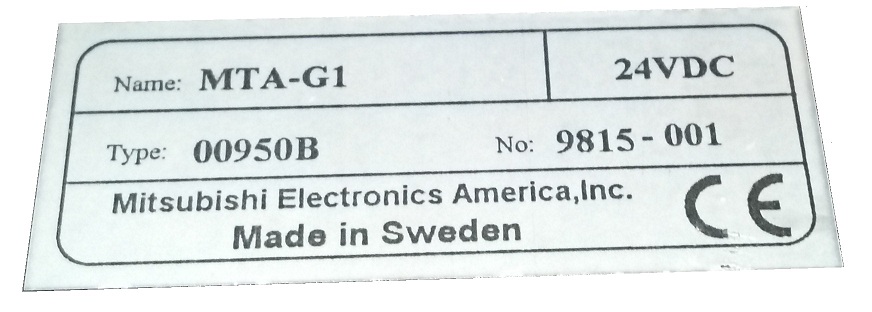

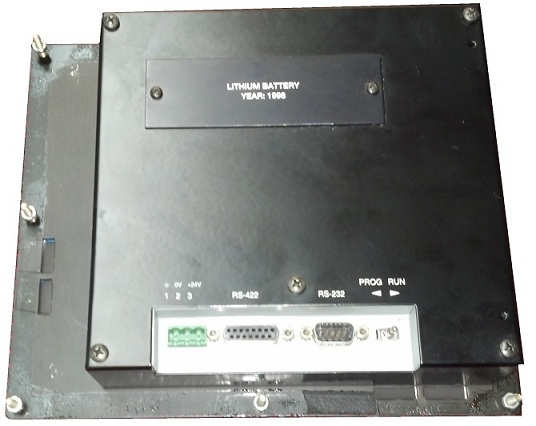

MTA-G1

MTA-G1
MTA-G1
MTA-G1

Model: MTA-G1
Part Number: 00950B
Manufacturer: Mitsubishi
Condition: Used
Serial Number: 9815-001
Display type: Monochrome Backlit LCD
Presentation form: Graphics + Text
Display size: 240 X 128 Pixel
Memory: 110000 bytes battery backed RAM memory.
Power supply: 24 Volts DC.
Dimensions: 9.5" Wide, 7.9" High, 2.1" Deep
Expansion card locations: N/A
Communication port: RS422/485, RS232
Description: Beijers Electronics non-touch screen operator panel.
Primary serial port supports FX, A, and " C24" communications protocols.
Second serial port for printing, " transparent" access from PLC programming software or other operator interface devices, or PLC controlled " no protocol" serial communications .
Numeric keypad keyboard plus Up/Down/Left/Right arrows, Alarm List/Alarm Ack, eight programmable function keys, plus six re-programmable system keys (Main Menu, Alarm Ack, etc). Function keys have PLC controlled tri-color LED's (8 total). Eight function keys and six system keys may be re-labeled by user with inserts which fit beneath the NEMA 4 overlay.
Individual screens may be password protected.
Program using Windows software SW-MTA-WIN.
Price: US $4,900.00

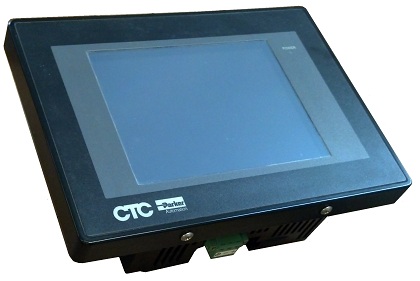

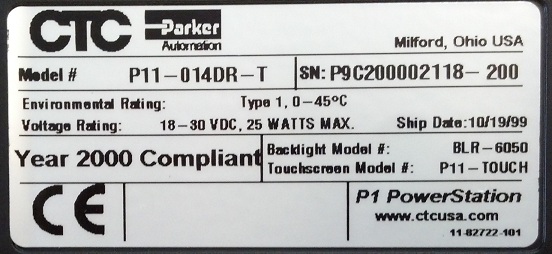

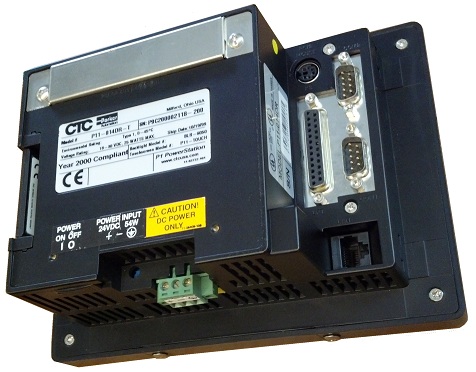

P11-014DR-T

P11-014DR-T
P11-014DR-T
P11-014DR-T

Model: P11-014DR-T
Part Number: P11-014DR-T
Manufacturer: CTC Parker
Condition: ~10 hours...Demmo Version
Serial Number: P9C200002118-200
Display type: Mono - LCD
Presentation form: Graphics + Text
Display size: 1/4 VGA (320 x 240)
System Memory: 8 MB standard (1 SIMM 72 pin)
Storage Memory: 16MB Compact FLASH (minimum)(Field replaceable FLASH Disk)
Power supply: 18-30 Volts DC, 25 Watts
Dimensions: (HxWxD) 7.7" x 5.6" x 3.2" (194.7 x 142.7 x 81 mm)
Expansion card locations: N/A
Communication Serial Port: (1) RS232/422/485 (non-isolated)(1) RS232 (non-isolated)
Communication Ethernet Port: 10 MBPS; 10Base-T with RJ45 connector
Communication Parallel Port: IBM Parallel
Expansion Slots: PC/104 (16 bit)l
Description: CTC’s 1/4 VGA PowerStation is a powerful, PC architecture hardware and HMI solution for your panel replacement applications. The Model P1 workstation includes Interact software for panel replacement, along with alarming, graphics and networking capability. This software combination makes it easy for you to replace pushbuttons, digital meters, and other devices used in panels, eliminating the time and cost of hardwiring. The Model P1 PowerStation gives operators the information they need to more effectively monitor and control your machine or process. In addition, free-form graphics and animation capability enables you to provide a realistic representation of your application. Price: US $2,750.00

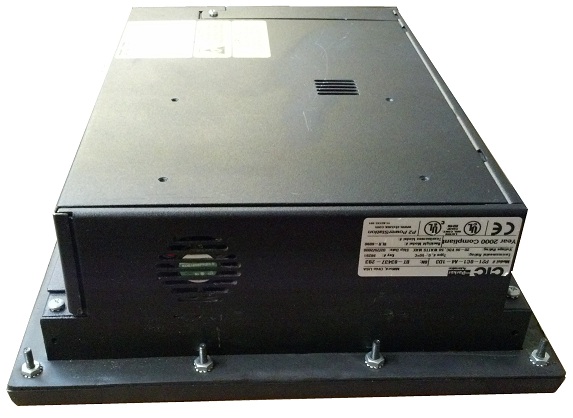

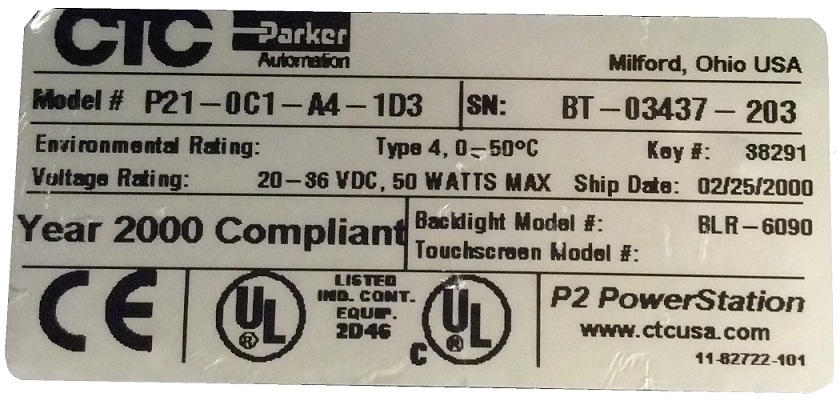

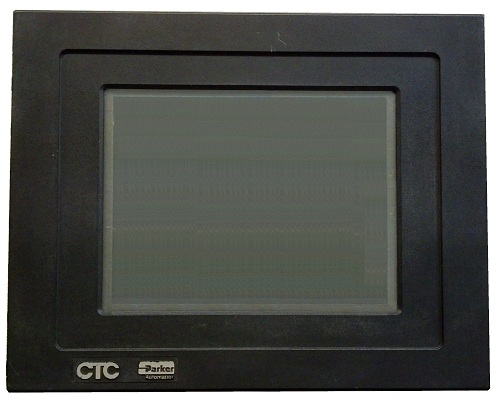

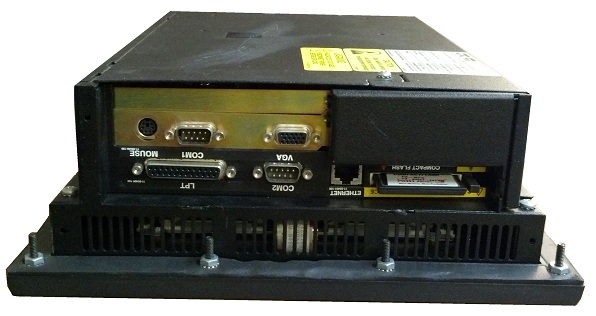

P21-0C1-A4-1D3

P21-0C1-A4-1D3
P21-0C1-A4-1D3
P21-0C1-A4-1D3
P21-0C1-A4-1D3

Model: P21-0C1-A4-1D3
Part Number: P21-0C1-A4-1D3
Manufacturer: CTC Parker
Condition: Used
Serial Number: BT434-03437-203
Display type: Monochrome LCD
Presentation form: Graphics + Text
Display size: , 640 x 480 VGA, 16 shades of gray
Brightness: 110 cd/m2 (NIT).
System Memory: 8 MB minimum, 256 MB maximum
Storage Memory: 16MB Compact FLASH (minimum)(Field replaceable FLASH Disk)
Input Voltage: 20–36 VDC
Power Consumption: 42W maximum (54W maximum with PC/104)
Dimensions: (HxWxD) 11.0" (280mm) x 13.8" (350mm) x 3.5" (89mm)
Expansion Card Locations: N/A
Communication Serial Port: (1) RS232/422/485 (non-isolated)(1) RS232 (non-isolated)
Communication Ethernet Port: RJ45 10/100 Base T Ethernet
Communication Parallel Port: 25-pin IBM parallel
Expansion Slots: PC/104 (16-bit, +/-5V, +/-12V)
Description: CTC’s PowerStation is a powerful, PC architecture hardware and HMI solution for your panel replacement applications.
Price: US $3,950.00

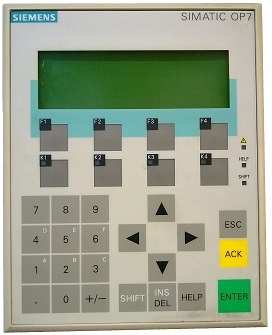

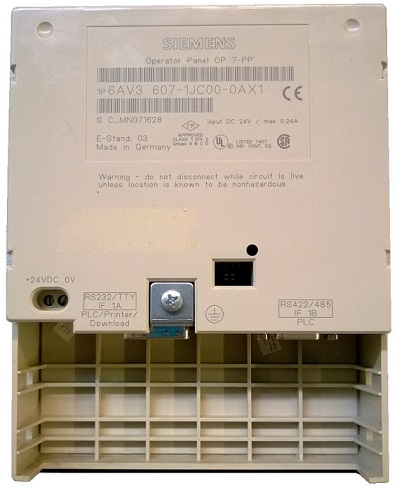

SIEMENS OP 7-PP

Simatic_OP7_011
P21-0C1-A4-1D3

Model: OP 7-PP
Part Number: 6AV3 607-1JC00-0AX1
Manufacturer: Siemens
Condition: Used
Serial Number: S C_MN071628
Display type: Monochrome LCD
Presentation form: Text
Display size: 4 Lines /20 Characters
Function keys programmable: 8 function keys, 4 with LEDs
Storage Memory: Flash/RAM 128k Usable Memory
Input Voltage: 24 VDC
Rated Current: 0.19 A
Dimensions Front of enclosure (W x H): 144 mm x 180 mm
Dimensions Mounting cutout/Device depth (W x H/D) in mm): 135 mm x 171 mm / 38,5 mm device depth
Communication Serial Port: 1 x TTY, 1 x RS232, 1 x RS422, 1 x RS485
Communication Ethernet Port: 0
Communication Parallel Port: 0
Expansion Slots: 0
Description: OPERATOR INTERFACE PANEL TEXT DISPLAY 24VDC OP7 .
Price: US $850.00

EXOR-UNIOP

EXOR-UNIOP
EXOR-UNIOP
EXOR-UNIOP

Model: UNIOP
Part Number: MD03R-02-0045
Manufacturer: EXOR
Condition: New
Display: MD03R-02 2x20 LCD backlit
MD03R-04: 4x20 LCD backlit
Contrast: regulation software
Keyboard: 19 keys (9 function keys + numerical keypad)
User LED: 9
Power supply: 24 VDC
Program memory: 512 KB Flash EPROM (32 KB reserved for protocol)
Communication: ports 1 RS-232/RS-485/CL 20 mA port for programming/PLC (-0045)
Aux Port: YES
Alarms: 256
Alarm: infor page YES
Number of variables per page: Unlimited
Page size: 32 rows
Macro Editor: YES
Hardware: Clock/Calendar NO
Historical: Event List NO
Recipes: NO
UniNET: network Only as a CLIENT node
Password: YES
Printer: NO
Description: OPERATOR INTERFACE CONTROLLER 0.25AMP 24VDC.
Price: US $1920.00

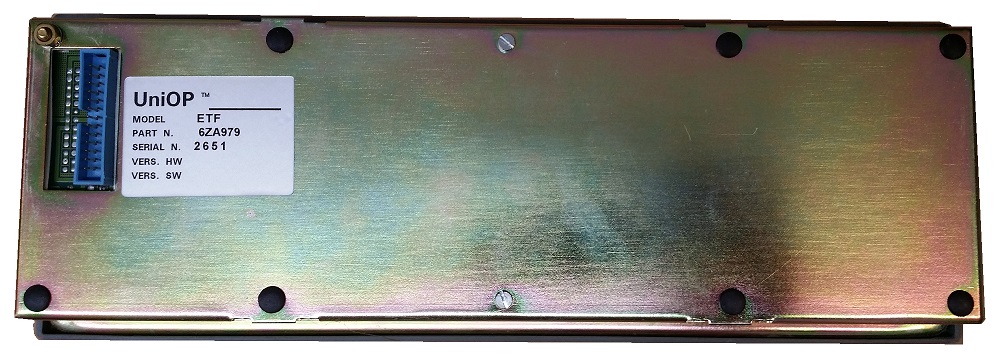

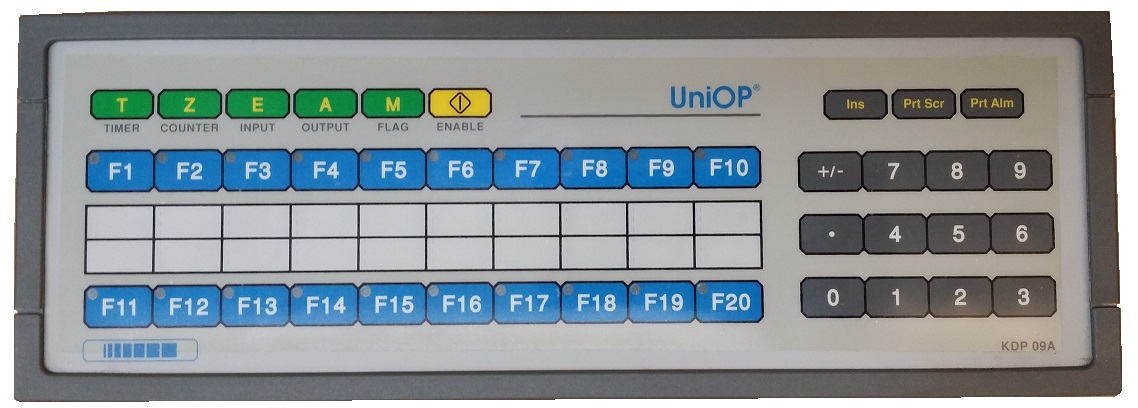

EXOR-UNIOP ETF

EXOR-UNIOP ETF
EXOR-UNIOP ETF

Model: UNIOP
Part Number: 6ZA979
Manufacturer: EXOR
Condition: New
Model No.: ETF
Keyboard: 20 Function Keys
Description: UniOP 20-Function HMI Operator Interface Panel External Keyboard Model ETF.
Price: US $1320.00
