ALLEN BRADLEY SLC 500 [1747-L551]

Direct Logic 105 F1-130AR
Model: SLC 500 5/05 CPU
Part Number: 1747-L551
Manufacturer: Allen-Bradley/Rockwell Automationbr
Condition: Used.
Serial Number: N/A
Digital Inputs: N/A
Digital Inputs Type: N/A
Digital Outputs: N/A
Digital Outputs Type: N/A
Auxiliary device power suppl: N/A
Power supply: N/A)
Program Memeory Byte (Step): 16K
Communication port: RS232C programming port

Description: The 1747-L551 SLC Processor contains 16K words total (12K words for data or prog.; 4K words for data only) user memory, max. The number of I/O for 1747L551 is 4096 in + 4096 out absolute maximum. Local analog I/O, max, for the processor is 480. It has a program scan time of 0.9ms (typ), and I/O scan time of 0.225ms (typ). Number of I/O module slots in the local I/O chassis (max) is 30; number of local I/O chassis (max) is 3. Backup memory is flash, battery-backed RAM is standard. Processor contains a backplane current load of 1A at 5V DC or 0A at 24V DC.

Price: US $2,000.00

ALLEN BRADLEY MicroLogix 1200 [1762-L40BXB]

Direct Logic 105 F1-130AR
Model: MicroLogix 1200
Part Number: 1762-L40BXB
Manufacturer: Allen-Bradley/Rockwell Automationbr
Condition: Used.
Serial Number: N/A
Digital Inputs: (24) 24V DC sink/source
Digital Outputs: 8 relay - 8x24V DC source
Power supply: 20.4…26.4V DC Class 2 SELV
Program Memeory Byte (Step): 6 KB
Communication port: RS232C programming port

Description: MicroLogix 1200, 24V dc power, (20) standard 24V dc and (4) fast 24V dc digital inputs, (8) relay outputs, (7) standard 24V dc FET outputs, (1) fast 24V dc FET output.

Price: US $290.00

412-DC-R

FX2N-48MR-ES/UL
FX2N-48MR-ES/UL
Model: 412-DC-R
Part Number: 412-DC-R
Manufacturer: Moeller
Condition: Used.
Serial Number: 60947
Digital Inputs: 8
Analog Inputs: 2
Digital Inputs Type: 8Vdc Sink/Source
Digital Outputs: 4
Digital Outputs Type: Relay/Dry Contacts
Power supply: 24 Vdc
Program Memeory: EEPROM

Description: Easy is a compact , user friendly, control relay for simple control applications that range from building and domestic automation to machine and plant control.

Price: US $99.00

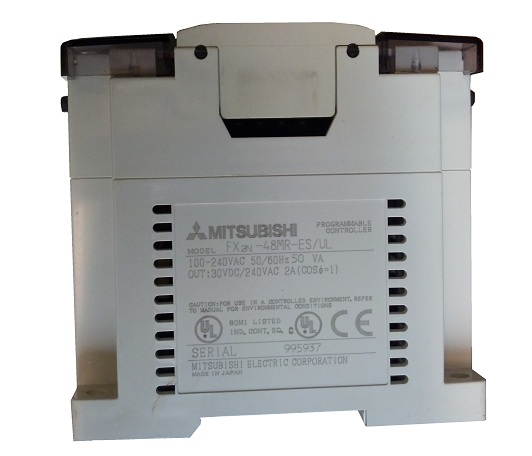

FX2N-48MR-ES/UL

FX2N-48MR-ES/UL
FX2N-48MR-ES/UL
Model: FX2N-48MR-ES/UL
Part Number: FX2N-48MR-ES/UL
Manufacturer: Mitsubishi
Condition: Used.
Serial Number: 995937
Digital Inputs: 24
Digital Inputs Type: 24Vdc Sink/Source
Digital Outputs: 24
Digital Outputs Type: Relay/Dry Contacts
Max I/O: 256
Power supply: 100-240V AC 50/60Hz 50VA
Program Memeory Byte (Step): 32K Max (16,000)
Communication port: RS422/485, RS232

Description: The FX2N has set the standard for micro PLC performance over the past 10 years. Superior performance and reliability are the hallmarks of the FX Family of PLCs. Excellent memory, data processing, networking and serial communications, and blazing fast instruction execution speed make the FX2N the perfect choice for many industrial automation applications.

Price: US $549.00

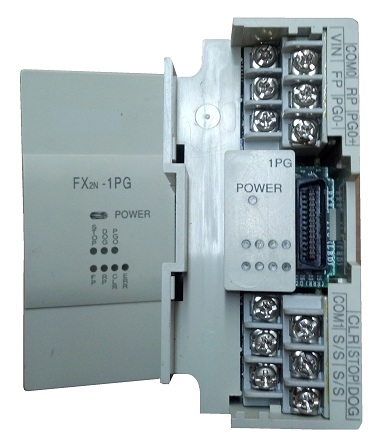

FX2N-1PG-E

FX2N-1PG-E
FX2N-1PG-E
Model: FX2N-1PG-E
Part Number: FX2N-1PG-E
Manufacturer: Mitsubishi
Condition: Used.
Serial Number: 026975
General specifications: Conforms to FX1N-/FX2N base units
Signal level for digital inputs: 24 V DC / 7-40 mA
Power supply: 5 - 24 V DC / 60 mA
Accessible axes: 1
Output frequency (pulse/s): 10 - 100 000
Related I/O points: 8
Certifications: CE, UL/cUL

Description: The positioning modules FX2N-1PG-E and FX2N-10PG are extremely efficient single-axis positioning modules for controlling either step drives or servo drives (by external regulator) with a pulse chain. It is very suitable for achieving accurate positioning in combination with the MELSEC FX series. The configuration and allocation of the position data are carried out directly via the PLC program. A very wide range of manual and automatic functions are available to the user.

Price: US $198.00

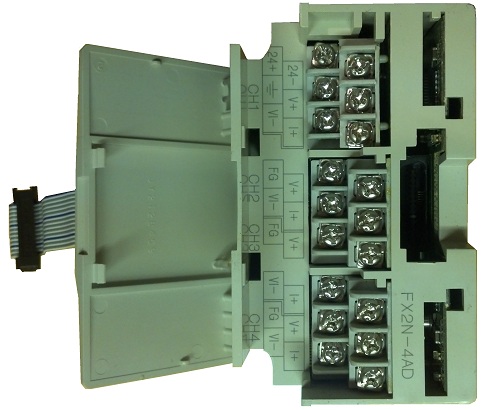

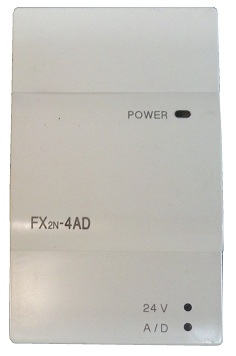

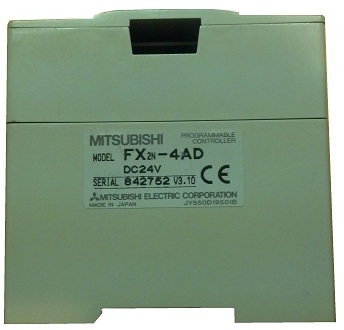

FX2N-4AD

FX2N-4AD
FX2N-4AD
FX2N-4AD
Model: FX2N-4AD
Part Number: FX2N-4AD
Manufacturer: Mitsubishi
Condition: Used.
Serial Number: 842762
Output Channel: 4 CH
Analog Input Range: -10 to +10V DC(2k to 1MΩ), 0 to 20mA, 4 to 20mA (500Ω or less)
Resolution: 5mV OR 20μA
Digital Output: Signed 12 bit OR 10 bit
Overall Accuracy: ±1%
Conversion Time: 15ms [Normal Speed], 6ms [High Speed]
No. of Occupied I/O: 8 I/O points
Applicable PLC: FX1N / FX2N / FX2NC / FX3U *5
Certifications: CE, UL/cUL

Description: Analogue to digital, 4 channel, 12 bit, -10V to +10V, 4-20mA DC, 0-20mA DC

Price: US $178.00

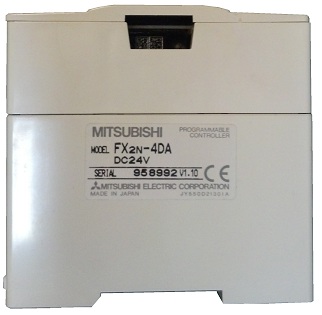

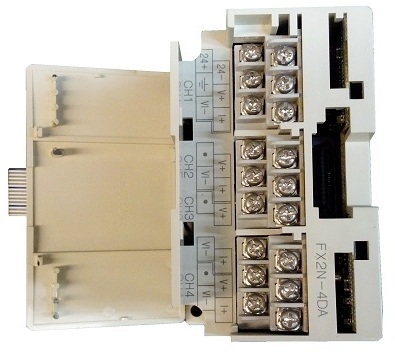

FX2N-4DA

FX2N-4DA
FX2N-4DA
FX2N-4DD
Model: FX2N-4DA
Part Number: FX2N-4DA
Manufacturer: Mitsubishi
Condition: Used.
Serial Number: 958992
Output Channel: 4 CH
Analog Output Range: -10 to +10V DC(2k to 1MΩ), 0 to 20mA, 4 to 20mA (500Ω or less)
Resolution: 5mV OR 20μA
Digital Input: Signed 12 bit OR 10 bit
Overall Accuracy: ±1%
Conversion Time: 2.1ms / 4 channels
No. of Occupied I/O: 8 I/O points
Applicable PLC: FX1N / FX2N / FX2NC / FX3U *5
Certifications: CE, UL/cUL

Description: Digital to analogue, 4 channel, 12 bit, -10V to +10V, 4-20mA DC

Price: US $249.00

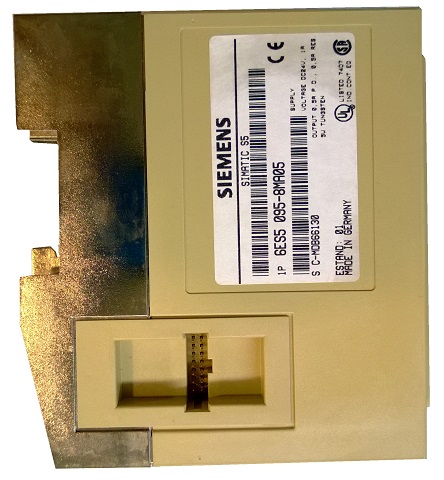

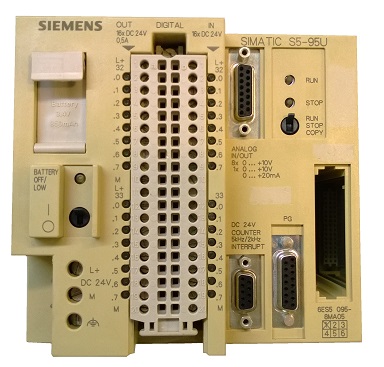

S5-95U

S5-95U
S5-95U
Model: S5-95U
Part Number: 6ES5 095-8MA05
Manufacturer: Siemens
Condition: Used.
System Name: Simatic S5
Serial Number: S C-MDB66130
Approx. Dimensions: 6" x 6" x 6"(15cm x 15cm x 15cm)
Approx. Weight: 2 lbs, 13 oz (1.3 kg)

Description: MODULE CPU S5-95U 16I/16O 16K 24VDC

Price: US $1,900.00

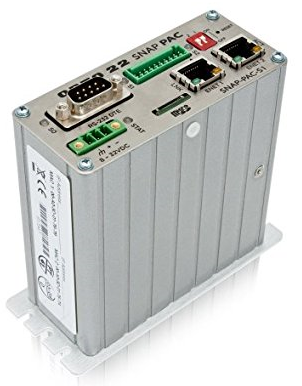

SNAP-PAC-S1 by OPTO 22

S5-95U
Model: SNAP PAC
Part Number: SNAP-PAC-S1
Manufacturer: OPTO 22
Condition: New/Demmo.
System Name: Controller
Serial Number: N/A
Approx. Dimensions: 102.86 x 44.44 x 111.1 (DIN Rail), 121.84 x 44.44 x 111.1 (Panel) mm mm
Communication Port Type : RS232, RS485, Ethernet
For Use With : Ethernet Network, I/O Rack
Input Type : Analogue, Digital
Length : 102.86 (DIN Rail), 121.84 (Panel) mm
Memory : 32 MB (Total RAM), 8 MB (Battery-Backed RAM), 16 MB (Flash)
Mounting Type : DIN Rail, Panel
Number of Inputs : 6
Number of Outputs : 4
Output Type : Analogue/Digital/Serial
Special Features : Ethernet Interface for Host and I/O Communication, Wired + Wireless Models, LAN Network, Multiple Protocol Support, FTP Server/Client Capability
Supply Voltage : 8 to 32 VDC VDC

Description: The SNAP PAC S-Series is the heavy-duty half of the SNAP PAC family, designed for use with larger, high point-count or complex automation systems. These powerful standalone controllers work equally well in applications ranging from intricate, high-speed OEM machinery to expansive, distributed control usually requiring a traditional DCS.

Price: US $888.00
