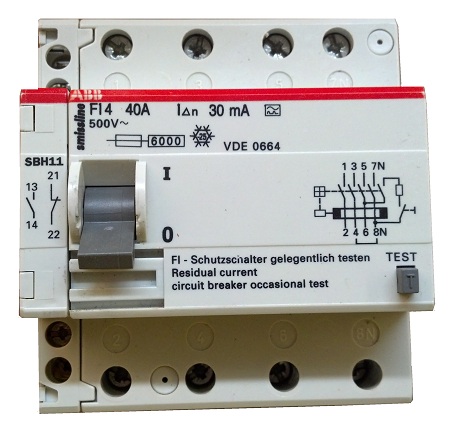

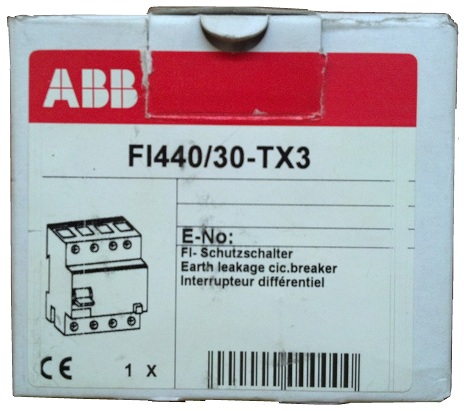

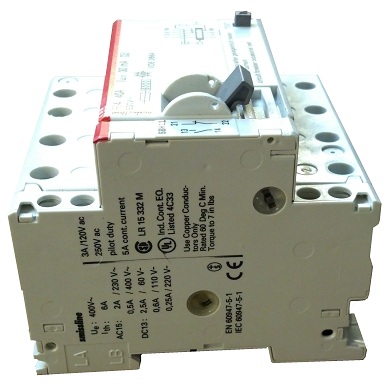

FI440/30-TX3
Part Number: FI44030-TX3
Manufacturer: ABB
Condition: New
Serial Number: N/A
Function: Circuit Breaker
Operating Voltage: 230/500 VAC at 45-60 Hz
Description: ABB 4 Pole Circuit Breaker with Neutral
Price: US $120.00

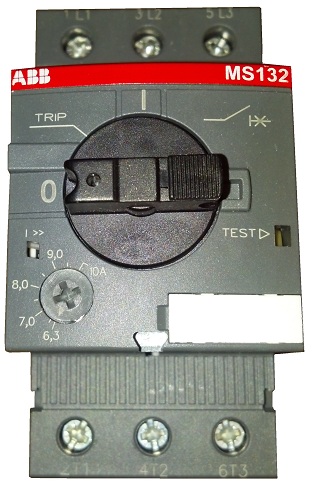

MS132-10
Model: MS132-10
Part Number: 1SAM350000R1010
Manufacturer: ABB
Condition: Demo
Serial Number: N/A
Function: Manual motor starter
Setting Range: 6.30 ... 10.0 A
Number of Poles: 3
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
Horse Power Rating UL/CSA: 220...240V AC 3Phase 3 Hp | 440...480V AC 3Phase 5 Hp
Description: The MS132-10 manual motor starter is a compact 45 mm width devices with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and the trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.
Price: US $59.00
